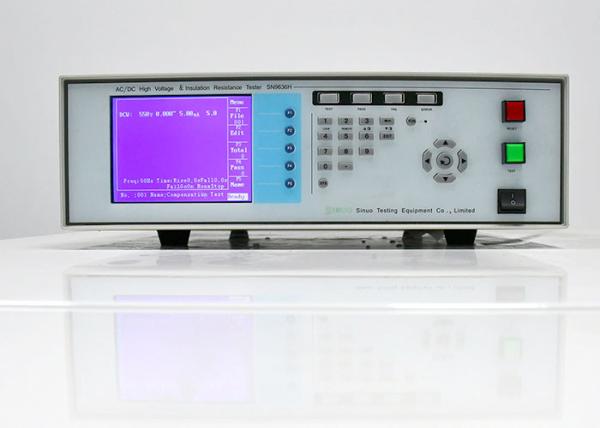

High Voltage Insulation Flash Tester

Brand Name : Sinuo

Model Number : BF9636H

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 10 Sets Per Month

Delivery Time : 30 Days

Packaging Details : Plywood

Output voltage setting range : AC 200～5000V

Output voltage accuracy : ±(1.5%×setting+5digits)

Breakdown current measurement range : 0.10～100.0mA

Breakdown current measurement accuracy : ±(1.5%×setting+5digits)

Test time range : 1～300s

Test time resolution : 1s/step

Contact Now

High Voltage Insulation Flash Tester

Product overview:

■Meet the test requirements of general electrical safety standards such as IEC 60884-1:2013 clause 17, etc
■ Up to 100 groups of test condition memory, model of each group can be set, easy to find, test data can be saved via USB(optional)
■ Voltage ramp-up and ramp-down functions to meet the requirements of new industry standards;
■ Breakdown current upper and lower limit preset, intelligent judgment;
■ Digital closed-loop feedback control mode, automatic voltage regulation mode, automatic correction of output voltage/current, and not affected by the external power grid, ensuring the accuracy of the test

■ High-definition LCD display and simple panel operation

Technical parameter:

Model BF9636H
Test Contents AC and DC withstand voltage, insulation resistance
Data storage method USB (optional)
External interface Alarm LAMP, PLC, RS-232
AC withstand voltage
Output voltage setting range / accuracy

AC 200～5000V

±(1.5%×setting+5digits)
Breakdown current measurement range / accuracy

0.10～100.0mA

±(1.5%×setting+5digits)
Breakdown current preset alarm range

Upper limit :0.1～100.0mA；

Lower limit :0.00～5.00mA
Short-circuited current capacity ≥200mA (the device will enter into protection status when short-circuited current exceeds 200mA)
Test time range / resolution 1～300s 1s/step
DC withstand voltage
Output voltage setting range / accuracy DC 200～5000V ±(1.5%× setting +5 digits )
Breakdown current measurement range / accuracy 0.10～10.00mA ±(1.5%×display+5 digits)
Breakdown current preset alarm range Upper limit: 0.10～10.00mA; lower limit: 0.00～5.00mA
Test time range / resolution 1～300s 1s/step
Insulation resistance
Output voltage setting range / accuracy DC500/1000V ±(1.5%× reading +5 digits )
Insulation resistance measurement range / accuracy

1~2000MΩ:

≤100MΩ:± (5%×display+3 digits )

>100 MΩ:± (8%× display +8 digits)
Insulation resistance alarm setting range

Upper limit: 0 ～ 2000MΩ; lower limit: 1 ～ 2000MΩ
Test time range / resolution

1～300s 1s/step
Equipment dimensions 435MM(W)*150MM(H)*550MM(D)
Equipment weight Approx. 30KGS
Equipment accessories Power cord*1, high voltage probe*1, test wire*1, fuse*1
