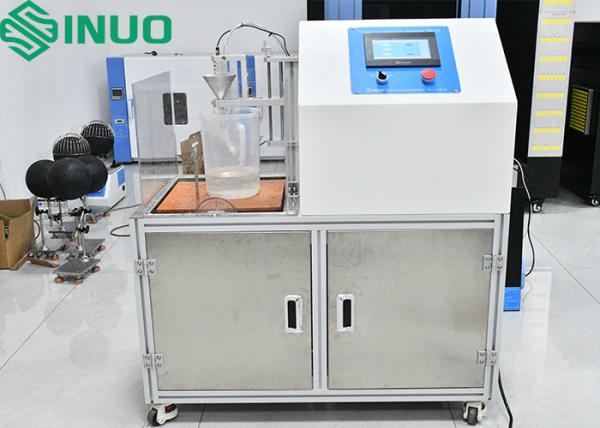

Automatic Spillage Test Apparatus 250-900mL Flow IEC 60335 Compliant

Brand Name : Sinuo

Model Number : SN1118B

Certification : Calibration Certificate(Cost Additional )

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : T/T

Supply Ability : 100 sets per month

Delivery Time : 20 Days

Packaging Details : Plywood Case

Tilt Angle : 0~20 °

Flow Range : 250mL-900ml

Injection Speed : 250ml-900ml per minute

Adjustable Height : maximum 400 mm

Funnel Specifications : Ø8mm×30mm

Stage Size : 350X350mm

Contact Now

Automatic Spillage Test Apparatus Compliant Overflow Safety Testing

Product information:

Standards Compliance: Meets IEC 60335-2-6 (Clause 15.2), IEC 60335-2-25 (Clause 11, Figures 102 & 103), and IEC 60335-2-82 (Clause 15.2) requirements

It can be in 1min with 1% sodium chloride solution (container capacity of 15%, or 0.25L solution with the same concentration, the two take more) evenly into the container of the test appliance.

Use: The structure of the product in normal operation will accidentally splash water outside the container, or the water in the container is too full, when energized, the water will boil over and so on. This equipment is used to test the liquid heater for moisture resistance test, the sample can ensure that the overflow of water does not affect their electrical insulation performance.

Main Parameters:

1 Control System PLC controller with HMI (Human-Machine Interface)
2 Water Injection Mechanism Stepper motor-driven stainless steel piston cylinder
3 Tilt Adjustment 0~20° adjustable angle
4 Flow Control 250mL-900mL adjustable range
5 Injection Speed 250-900mL/min programmable rate
6 Funnel Dimensions Ø8mm × 30mm length
7 Alignment System Laser-guided test point alignment
8 Height Adjustment Max. 400mm vertical range
9 Sample Platform 350×350mm placement area
10 Power Requirements AC220V 50Hz 500W
Automatic Spillage Test Apparatus 250-900mL Flow IEC 60335 Compliant
Automatic Spillage Test Apparatus 250-900mL Flow IEC 60335 Compliant
