IEC 60598-1 Fluorescent Lamp Axial Force Tester for mechanical strength of lamp holder test

Brand Name : Sinuo

Model Number : SN9926

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20 Sets Per Month

Delivery Time : 30 Days

Packaging Details : Plywood Case

Standard : IEC60598-1

Clause : Clause 4.4.4

Force range : 0-500N

Test stroke : 0-500mm

Force speed : 0-300mm/min

Results display : Force-time curve

Drive mode : Motor drive

Clamping method : Mechanical clamping

Contact Now

IEC 60598-1 Fluorescent Lamp Axial Force Tester for Mechanical Strength of Lamp Holder Test

Product Information:

Standard: IEC60598-1:2014 "Luminaries - Part 1: General requirements and tests" clause 4.4.4
IEC62560:2015 "Self-ballasted LED-lamps for General lighting services by voltage >50V - Safety specifications" clause 9.4


Specimen and Limitations: Lampholders for fluorescent lamps and self-rectified lamps.


Test Purpose: Used to test the mechanical strength of lampholders for fluorescent lamps and self-rectified lamps.

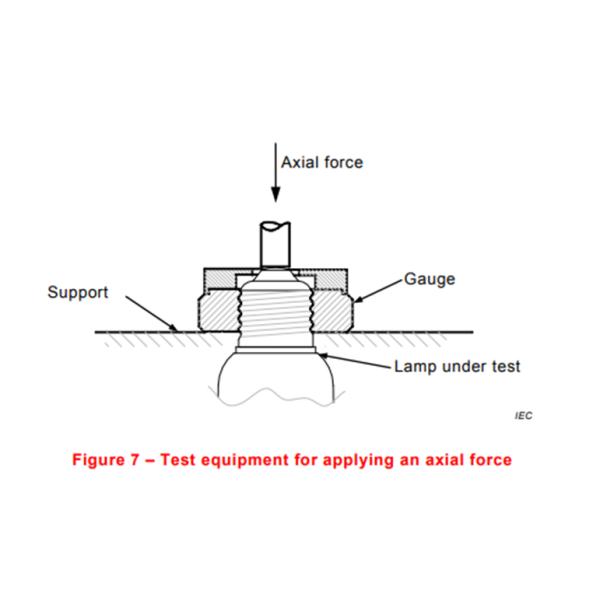

Test Principle: A motor-driven pressure plate applies a constant pressure to the center of the lamp holder. This forces the test lamp holder vertically along the axis of the fluorescent lamp until the force reaches a constant value for 1 minute, then releases the pressure.

IEC 60598-1 Fluorescent Lamp Axial Force Tester for mechanical strength of lamp holder test


Structure and Features: Single-arm force-applying mechanism with adjustable force value and LCD display.


Operating environment: AC220V, 50Hz

Technical Parameters:

Item Specification
Test Station Single station
Electrical Control LCD interface operation and display, with force–time curve
Drive Mode Motor-driven
Specimen Clamping

Mechanical clamping, adjustable clamping point position

IEC 60598-1 Fluorescent Lamp Axial Force Tester for mechanical strength of lamp holder test
Force Range 0–500 N, resolution 0.1 N, accuracy ±1% F.S. Capable of meeting IEC 60598-1 requirements (15 N & 30 N) and IEC 62560:2015 requirements (80 N & 120 N)
Test Lampholders

7006-6-1, 7006-27H-1, 7006-27F-1, 7006-27B-1, 7006-27-7 (one of each)

IEC 60598-1 Fluorescent Lamp Axial Force Tester for mechanical strength of lamp holder test
Force Speed 0–300 mm/min
Stroke 0–500 mm, resolution 0.01 mm
Result Display Force–time curve display; test results can be output via mini printer

IEC 60598-1 Fluorescent Lamp Axial Force Tester for mechanical strength of lamp holder test
IEC 60598-1 Fluorescent Lamp Axial Force Tester for mechanical strength of lamp holder test
IEC 60598-1 Fluorescent Lamp Axial Force Tester for mechanical strength of lamp holder test
